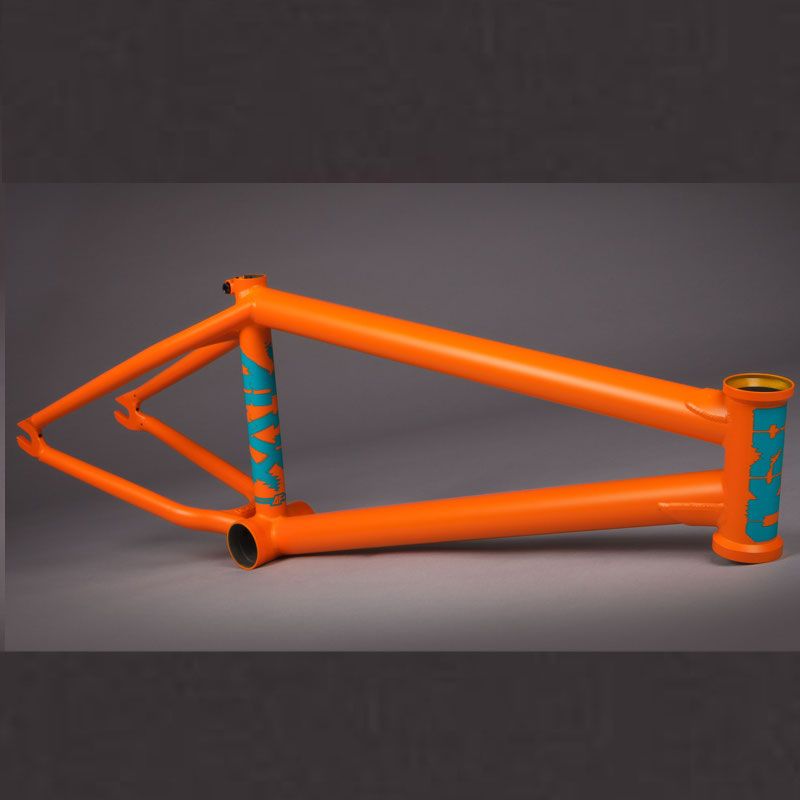

BMX FRAME BSD ALVX + ELECTRIC ORANGE 2022

BMX FRAME BSD ALVX + ELECTRIC ORANGE 2022

New for 2022 is the ALVX AF+, the latest version of Alex Donnachie’s signature ALVX frame. Featuring the same super tech geometry and ultra short rear end, but now with an updated invest cast chainstay yoke which maintains the tire clearance as well as creating a more rigid rear triangle and it also looks pretty sick...

 100% Chromoly Sanko 4130 seamless

headset, BB and dropouts heat treated

Headtube reinforced with 2 externals gussets, butted tubes for more toughness.

BSD logo incorporate in the top tube gusset

Drop out investment cast

Investment cast yoke, easier to use large tire. More strength, reinforced for grinding.

Integrated seat clamp

Dropouts Investment Cast 7mm

Chain tensioner integrated

Integrated headset

Mid BB
Brakeless

- - - - -

Toptube : 20.8" 21"

Chainstay : 12.5" à 13"

BB heigh : 11.7"

Headtube angle : 75.5°

Seat tube angle : 71°

Standover : 8.7’’

Weight : 2.26kg

Color: ELECTRIC ORANGE
